etherCON-runkoliittimet

Täältä löydät Neutikin kaikki etherCON-runkoliittimet









Neutrik etherCON-runkoliitinmallit on tehty kestämään kovaa käyttöä ammattiaudio- ja -video- sekä valaistusverkkosovelluksissa. Mallistosta löydät useita vaihtoehtoja eri tilankäyttö- ja kustannusvaatimuksiin

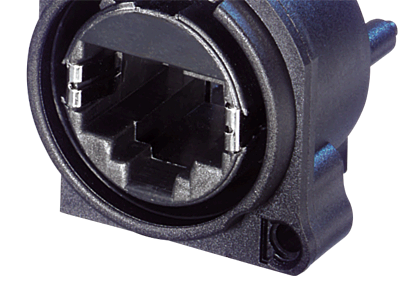

A-sarja

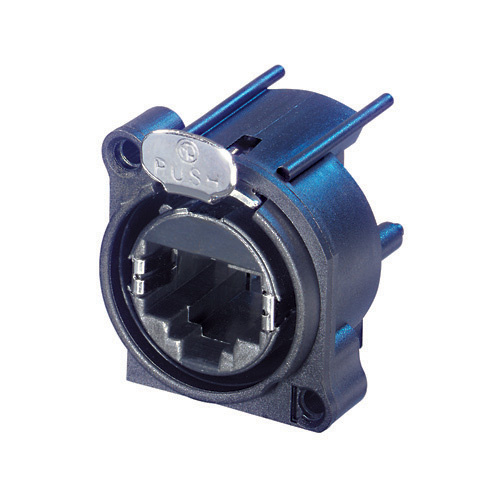

NE8FAH

Horizonal PCB mount RJ45 receptacle, A-Series cutout with latch lock, max. panel thickness 3 mm

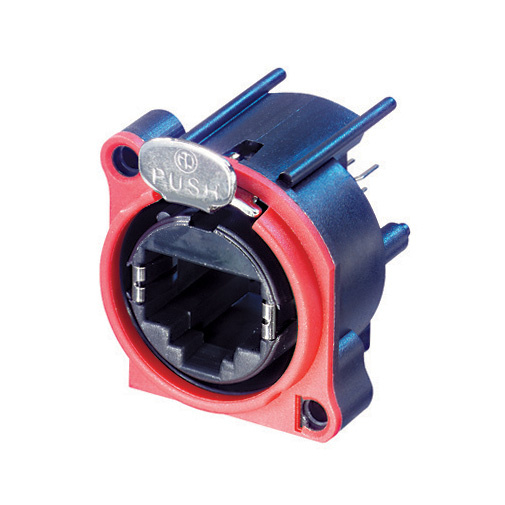

NE8FAV

Vertical PCB mount RJ45 receptacle, A-Series cutout with latch lock, max. panel thickness 3mm



NE8FAV-SD

Vertical PCB mount RJ45 receptacle, A-Series cutout with latch lock,  two screw-domes for fixing the connector on the PCB, max. panel thickness 3 mm



NE8FAV-Y110

Panel mount RJ45 receptacle, IDC 110 punch down terminals, A-Series cutout with latch lock system, max. panel thickness 3 mm



NE8FAV-YK

Panel mount RJ45 receptacle with IDC terminals, A-Series cutout with latch lock, max. panel thickness 3 mm

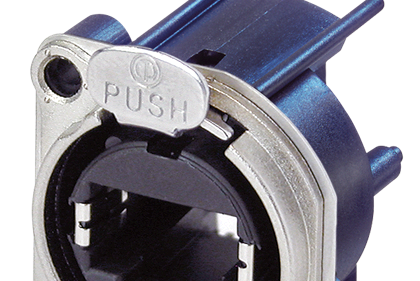

B-sarja





NE8FBV

Vertical PCB mount RJ45 receptacle, B-Series cutout with latch lock, max. panel thickness 3 mm



NE8FBH

Horizontal PCB mount RJ45 receptacle, B-Series cutout with latch lock, max. panel thickness 3 mm



NE8FBH-LED

Fully shielded, horizontal PCB mount RJ45 receptacle with B-Series cutout and latch lock, max. panel thickness 3 mm, closed metal housing to avoid EMI or cross talking, two light pipes for  standard 3 mm LED to indicate data transmission, status, etc.



NE8FBH-S

Fully shielded, horizontal PCB mount RJ45 receptacle, B-series cutout with latch lock, max. panel thickness 3 mm, closed metal housing to avoid EMI or cross talking

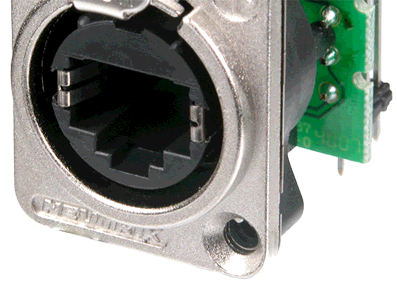

D-sarja





  • The etherCON Series is a ruggadized and lockable RJ45 connector system, optimized for proaudio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry
  • The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market. A Sealing kit, various wiring applications and colour codings are available





NE8FDH-C5e

Horizontal C5e component compliant PCB panel mount RJ45 receptacle, D-shape metal flange with latch lock, max. panel thickness 4 mm



NE8FDV

Vertical PCB panel mount RJ45 receptacle, D-shape metal flange with latch lock, max. panel thickness 4 mm



NE8FDV-B

Vertical PCB panel mount RJ45 receptacle, black D-shape metal flange with latch lock, max. panel thickness 4 mm



NE8FDV-SE

Vertical PCB panel mount RJ45 receptacle, combined with sealing kit SE8FD, max. panel thickness 4 mm



NE8FDV-Y110

Panel mount receptacle with IDC 110 punch down terminals, D-shape metal flange with latch lock, max. panel thickness 4 mm



NE8FDV-Y110-B

Panel mount receptacle with IDC 110 punch down terminals, black D-shape metal flange with latch lock, max. panel thickness 4 mm



NE8FDV-YK

Panel mount receptacle with IDC punch down terminals, D-sized metal flange with latch lock, max. panel thickness 4 mm



NE8FDV-YK-B

Panel mount receptacle with IDC punch down terminals, black D-sized metal flange with latch lock, max. panel thickness 4 mm



NE8FDP

RJ45 feedthrough receptacle, D-shape metal flange with the latch lock



NE8FDP-B

RJ45 feedthrough receptacle, black D-shape metal flange with the latch lock

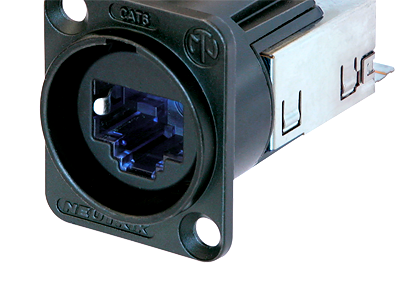

CAT6-sarja





NE8FDY-C6

D-shape CAT6 panel connector with Nickel housing



NE8FDY-C6-B

D-shape CAT6 panel connector with black Chrome housing
