Fluke 9132/9133 – kannettavat infrapunakalibraattorit (tiedot englanniksi)

Precision when you need it for infrared temperature calibration



  • Certify IR pyrometers from –30 °C to 500 °C (–22 °F to 932 °F)
  • Large 57 mm (2.25 in) blackbody target
  • RTD reference well for contact temperature measurement
  • Small, compact design

Whether you’re using in-line or handheld infrared pyrometers, you need good calibration standards to verify their accuracy. Our portable IR calibrators provide stable blackbody targets for calibrating noncontact IR thermometers from –30°C to 500°C.

These units feature a temperature controlled measurement surface with a diameter of 2.25" (57 mm). The target temperature can be controlled in set-point increments of 0.1° from –30°C to 500°C and a well is located directly behind the blackbody surface for contact calibration.



Features:

9132

  • For IR calibrations above normal ambient, the 9132 provides a stable measurement surface up to 500°C (932°F). Short heating and cooling times mean you won’t have to wait long to get your work done.

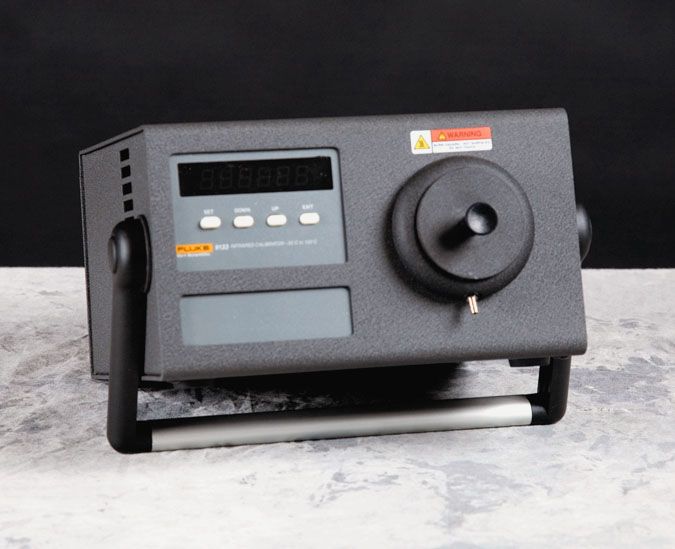

9133

  • If you’re calibrating IR guns at cold temperatures, you’ll love our new 9133. With solid-state cooling technology, this new IR calibrator reaches –30°C (22°F) in normal ambient conditions. With a conveniently located dry gas fitting on the front bezel, ice build up on the target can be avoided. At the upper end of its range, the 9133 provides stable temperatures to 160°C (320°F).
  • With heating and cooling times of about 15 minutes from ambient to either extreme, the 9133 gets you to temperature quickly and performs when it gets there.



Specifications

9133

9132

Temperature Range


–30 °C to 150 °C at 23 °C ambient
(–22 °F to 302 °F at 73 °F ambient)

50 °C to 500 °C
(122°F to 932°F)

Accuracy




± 0.4 °C (± 0.72 °F)




± 0.5 °C at 100 °C
(± 0.9°F at 212°F)
± 0.8 °C at 500 °C
(± 1.4 °F at 932 °F)

Stability




± 0.1 °C (± 0.18 °F)




± 0.1°C at 100°C
(± 0.18°F at 212°F)
± 0.3°C at 500°C
(± 0.54°F at 932°F)

Target Size

57 mm (2.25 in)

Target Emissivity

0.95 (± 0.02 from 8 to 14 mm)

Resolution

0.1 °

Heating Time

15 minutes (25 °C to 150 °C)

30 minutes (50 °C to 500 °C)

Cooling Time

15 minutes (25 °C to –20 °C)

30 minutes (500 °C to 100 °C)

Computer Interface

RS-232 I/O included with 9930 Interface-it software

Power



115 V ac (± 10 %), 1.5 A, or
230 V ac (± 10 %), 1.0 A,
switchable, 50/60 Hz, 200 W

115 V ac (± 10 %), 3 A or
230 V ac (± 10 %), 1.5 A,
switchable, 50/60 Hz, 340 W

Size (HxWxD)


152 x 286 x 267 mm
(6 x 11.25 x 10.5 in)

102 x 152 x 178 mm
(4 x 6 x 7 in )

Weight

4.6 kg (10 lb)

1.8 kg (4 lb)

NIST-Traceable
Contact Calibration

Data at –30°C, 0°C, 25°C, 75°C, 100°C, 125°C, and 150°C

Data at 50°C, 100°C, 200°C, 250°C, 300°C, 400°C, and 500°C
