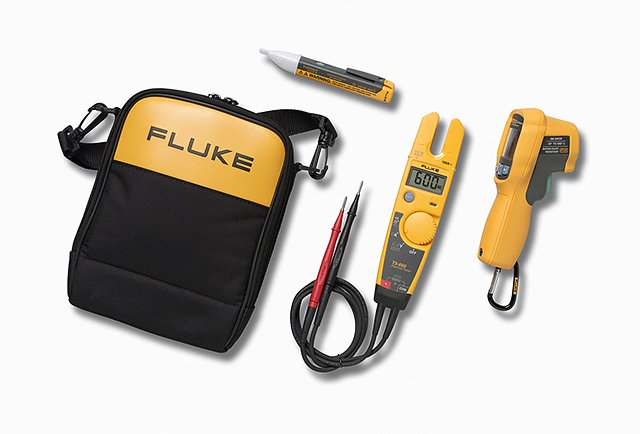

Fluke T5-600/ 62 MAX+ / 1AC II IR- lämpömittari-, sähkötesteri- ja jännitetunnistinpaketti

Suunniteltu sähkö- ja LVI-alalle



Tämä Fluke-mittauspaketti on suunniteltu sekä sähkö- että LVI-alan teknikoille ja huoltohenkilökunnalle ongelmien nopeaan ratkontaan. Voit ensin tutkia laitteiden kohonneita lämpötiloja, ja sen jälkeen paikallistaa ongelman tarkemmin sähköisillä testereillä.

Paketti sisältää Fluke T5-jännite-, jatkuvuus- ja virtatesterit, sekä Fluke 62 MAX+ -lämpömittarin.



Tekniset tiedot (englanniksi):

Fluke T5-600 Voltage, Continuity and Current Tester

Specifications

Jaw opening

12.9 mm (0.5 in)

Max wire size

1/0 THHN Cable

Current range ac rms

0 to 100.0 A

Accuracy ac current (50/60 Hz)

3 % ± 3 counts

AC Response

Averaging

Voltage range ac

0 to 600 V

Accuracy ac voltage

1.5 % ± 2 counts

Voltage range dc

0 to 600 V

Accuracy dc voltage

1 % ± 1 count

Resistance range

0 to 1000 Ω

Continuity beeper threshold

On at <25 Ω, off at >400 Ω

Volts indicator LED threshold

Guaranteed on by 30 V ac



Environmental Specifications

Operating Temperature

-10 °C to 50 °C

Storage Temperature

-30 °C to 60 °C

Humidity (Without Condensation)

0 % to 95 % (5 °C to 30 °C); 0 % to 75 % (30 °C to 40 °C);
0 % to 45 % (40 °C to 50 °C)

Dust/water resistance

Yes

Operating Altitude

2000 meters max

Temperature Coefficient

0.1 x (specified accuracy)/°C (<18 °C or >28 °C)



Safety Specifications

Overvoltage category

CAT III 600 V ac/dc (EN61010-1)

Agency Approvals

UL, CSA, and VDE

Maximum voltage

Between any terminal and earth ground



Mechanical and General Specifications

Size

30.5 mm x 51 mm x 203 mm

Weight

300g

Warranty

Two-years

Battery Life

200 hour zinc chloride, 400 hour alkaline

Battery type

2 x AA

Low battery indicator

Yes

Current sensor opening

12.9 mm

Calibration cycle

1 year

Test leads

Type:

Heavy duty, flexible leads rated for 1000V use.
Field replaceable leads terminate in male shrouded banana plugs

Probes:

One red, one black.
Detachable Slim-Reach™ probe tips

Styles:

TP1 Slim Reach™ Test Probes



Safety Specifications

Safety

CAT IV 600 V, CAT III, 1000 V

Maximum voltage

1000 V AC rms from earth to ground, in compliance with EN61010



Fluke 62 MAX+ Infrared Thermometer

Specifications

Temperature Range

-30 °C to 650 °C (-22 °F to 1202 °F)

Accuracy

±1.0 °C or ±1.0% of reading, whichever is greater
-10 °C to 0 °C: ±2.0
-30 °C to -10 °C: ±3.0

Response Time (95%)

Fluke 62 MAX+

<300 ms (95% of reading)

Spectral Response

8 to 14 microns

Emissivity

0.10 to 1.00

Optical Resolution

12:1 (calculated at 90% energy)

Display Resolution

0.1 °C (0.2 °F)

Repeatability of Readings

±0.5% of reading or <±0.5 °C (1 °F), whichever is greater

Power

AA battery

Battery Life

8 hours with laser and backlight on

Physical Specifications

Weight

255 g (8.99 oz)

Size

(175 x 85 x 75) mm (6.88 x 3.34 x 2.95) inches

Operating Temperature

0 °C to 50 °C (32 °F to 122 °F)

Storage Temperature

-20 °C to 60 °C (-4 °F to 140 °F), (without battery)

Operating Humidity

10 % to 90 % RH non-condensing at 30 °C (86 °F)

Operating Altitude

2000 meters above mean sea level

Storage Altitude

12,000 meters above mean sea level

IP Rating

IP 54 per IEC 60529

Drop Test

3 meters

Vibration and Shock

IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms

EMC

EN 61326-1:2006 EN 61326-2:2006

Standards and Agency Approval

Compliance

EN/IEC 61010-1: 2001

Laser Safety

FDA and EN 60825-1 Class II
